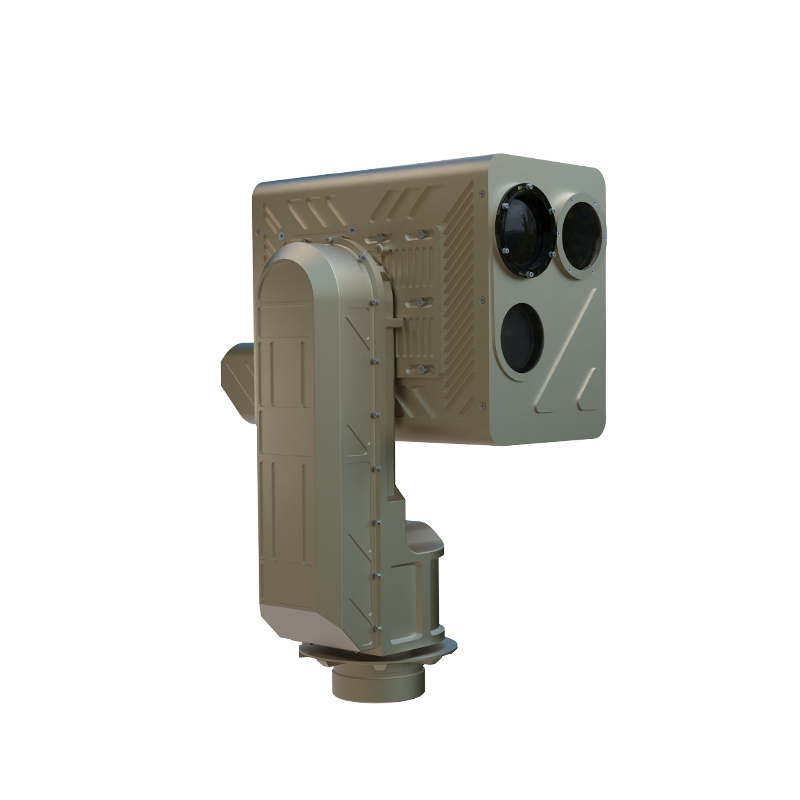

Long Distance Anti Drone System Lightweight Laser Jamming Interception System

Long Distance Anti Drone System Lightweight Laser Jamming Interception System
Long Distance Anti Drone System Lightweight Laser Jamming Interception System Long Distance Anti Drone System Lightweight Laser Jamming Interception System

Ampliación de imagen :  Long Distance Anti Drone System Lightweight Laser Jamming Interception System

Datos del producto:
Place of Origin: China
Nombre de la marca: Hope-Wish
Certificación: CE, FCC, ROHS, ISO9001
Número de modelo: HP-RJH2000
Pago y Envío Términos:
Cantidad de orden mínima: 1
Precio: negotiable
Detalles de empaquetado: Estuche de madera
Tiempo de entrega: 60-180
Condiciones de pago: L/C, D/A, D/P, Western Union, Moneygram
Capacidad de la fuente: 50 unidades por mes

Long Distance Anti Drone System Lightweight Laser Jamming Interception System

descripción
Método de detección: Radar y cámara Forma: Cuboides
Tamaño de la antena: 40 cm Módulo interior: Módulos especialmente diseñados para FPV
Duración de la batería: > 5 horas Tasa de actualización: 1.2S
Estado de productos: Existencias Estilo: Rectángulo
Resaltar:

long range anti drone system

,

lightweight laser jamming system

,

drone interception system with warranty

Product Description:

The lightweight laser jamming interception system is mainly aimed at small drone targets, completing the physical interception of threat targets in the protected airspace, and the optoelectronic jamming to prevent small drones from conducting reconnaissance and "suicide" attacks. It adopts a miniaturized and modular design approach, which can be quickly moved, deployed and set up for use.



Technical Parameters:

  Model HP-RJH2000
Tracking system Laser power ≥2000W
Maximum treatment time 200s/battery powered (10-15 seconds working, 30-60 seconds resting)
Treatment range 50m~300m(DJI Phantom 4)
Tracking accuracy ≤25urad
Visible light tracking Sensor 1'' progressive scan CMOS
Resolution 2048 × 2048
Sensor size 11.26 mm × 11.26 mm
Pixel size 5.5 μm × 5.5 μm
Focal length 500mm
Field of view 0.3°× 0.3°
Thermal imaging tracking Detector type uncooled Vox
Pixel size 12μm
Resolution 640 × 512
Spectral range 8~14μm
NETD ≤40mK@F1.0,300K
Focal length 60mm
Field of view 7.3°× 5.5°
Spatial resolution 0.2mrad
Digital zoom 1×/2×/3×/4×
False color White hot/Black hot/Rainbow/Iron red/Lava/Sky/Purple orange/Gradual red/Gradual green/Gradual blue
Image processing Non-uniformity correction/digital filtering noise reduction/digital detail enhancement
LRF Wavelength 1535nm
Light source type Diode pump
Distance measurement capability

≥500m(DJI Phantom 4);

≥5000m

Distance measurement accuracy ±1m
Operating frequency 1Hz/5Hz/10Hz
Accuracy rate 98%
laser illuminator Wavelength 808 ± 5nm
Laser power 11 ± 1W
Illumination angle 1°~65°
Laser control Automatic/Manual
Illumination distance ≥1500m
PTZ Horizontal speed 0.01°~50°/s
Horizontal Angle -170°~+170°
Vertical Angle -20°~+80°
Tracking accuracy ≤0.5mrad
  Communication interface 1×RS422/1×CAN/1×RJ45
Power interface DC20V~DC40V
Protection level IP65
Operating temperature -20℃~+50℃
Storage temperature -25℃~+55℃
Power consumption ≤400W
Dimensions <500mm × 400mm × 550mm
Weight ≤17Kg
Laser dimensions <500mm × 360mm × 280mm
Laser weight (including battery) ≤17Kg

Company:

Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.

Long Distance Anti Drone System Lightweight Laser Jamming Interception System 0
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
Long Distance Anti Drone System Lightweight Laser Jamming Interception System 1


Support and Services:

The Anti Drone System product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our team of experts is available to provide assistance with installation, configuration, troubleshooting, and maintenance of the system. We offer regular software updates and firmware upgrades to enhance the system's capabilities and address any potential security threats.



FAQ:

Q: What is the brand of this Anti Drone System product?
A: The brand name of this product is Hope-Wish.

Q: What is the model number of this Anti Drone System product?
A: The model number of this product is HP- [insert specific model number here].

Q: Where is this Anti Drone System product manufactured?
A: This product is manufactured in China.

Q: Does the Anti Drone System product come with a warranty?
A: For warranty information, please refer to the product documentation or contact our customer support.

Q: How does the Anti Drone System work to protect against unauthorized drones?
A: The Anti Drone System utilizes [insert relevant technology here] to detect and counter unauthorized drone activity, providing protection against potential threats.
