Product Description:

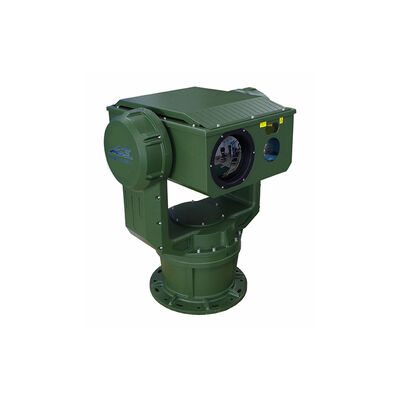

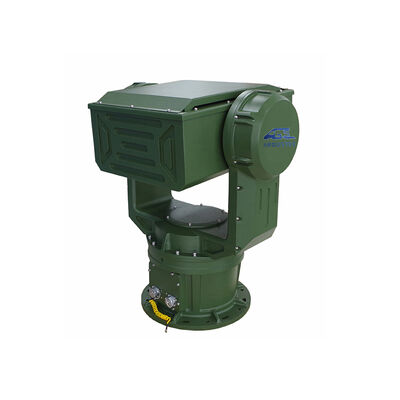

The Long Range Thermal Camera is a state-of-the-art Long-Distance Thermal Camera designed to deliver exceptional performance in detecting objects at remarkable distances. With a detection range of 5 to 10 kilometers, this Long Range Thermal Camera Thermal Imaging Camera offers unparalleled surveillance capabilities, making it ideal for applications requiring long-range observation and monitoring.
Equipped with a high-precision PTZ Thermal sensor, this Thermal Imaging Camera ensures accurate and reliable thermal detection across vast expanses. The PTZ (Pan-Tilt-Zoom) functionality allows for versatile and dynamic monitoring, enabling continuous rotation with a full 360° pan. This feature ensures comprehensive coverage, eliminating blind spots and allowing operators to track moving targets seamlessly within the camera’s field of view.
- Wider Detection spectrum: integration of high-definition visible light, medium-wave/long-wave thermal imaging/near infrared laser, complementary advantages of dual sensors detection, combination of active and passive detection, multi-source data aggregation and fusion processing, so that no hidden target, to satisfy the monitoring needs of day, night and all-weather types of environment.
- Faster invert speed adjustment: the rotation speed can reach 80°/s, the acceleration can reach 100°/s2, faster start-stop speed, smooth operation, which helps to quick capture and track moving targets.
- Wider coverage: Pan rotation range of 0° - 360° and Tilt rotation range of - 90° ~ + 90° to achieve dead angle detection and full dimension coverage
Features:
- Combines visible camera, thermal imaging camera (cooled/uncooled), or/and NIR Laser Illumination, multi sensor modules together that suit for long distance monitoring in total darkness and foggy/rainy environment.
- Optional system enhancement like Laser range-finders, GPS, electronic compass, auto-tracking system, AI-analysis module etc... so as to achieve the functions like all-day full dimension monitoring, positioning, tracking, identification etc...
Technical Parameters:
| Model |
HP-DMA360-TVC4516-2132-LRF |
| Detection |
Vehicle: 13km,Human:4.8km |
| Recognition |
Vehicle:3.4km,Human: 1.3Km |
| UAV Detection |
1.2km~1.5km (Thermal Camera System) |
| UAV Detection |
3km (Daylight camera system) |
| Thermal sensor |
Uncooled Vox sensor, 640*512 resolution |
| Thermal lens |
31~155mm |
| 5X continuous zoom, 8X digital zoom |
| FOV |
Auto focus |
| Image process |
1.Image enhancement: SDE 2.Color: White hot/Black hot
3.Brightness and contrast: 4.AGC, adjustable
5.Digital zoom: 2X/4X 5.Cross: Display 6.Correction: Shutter/Background
|
| Visible camera sensor |
1/1.8'' CMOS |
| 0.0002lux super high sensitive color to B/W CCD |
| 2 megapixels,1920X1080 |
| Automatic ICR switch |
| H.264/MPEG4/MIPEG |
| 32Kbps~16Mbps,60Hz30 FPS |
| Visible camera lens |
12.5～750mm |
| 60X zoom, auto focus |
| LRF |
1km distance |
| PT structure |
U Shape Structure, two/three window design |
| Rotation |
Pan: 0~360°, Tilt: +90°～-45° (Support overhead tracking) |
| Speed |
1.Pan speed: 0.01°～60°/s ; Tilt speed: 0.01°~60°/s
2. Acceleration: 100°/s2 Pan; 100°/s2 Tilt
4. Speed adaptive: with intelligent sensing shifting function, support lens focal length speed adaptive function
5. Speed mode: The highest speed mode can be set
6. Drive mode: direct drive with high torque rare earth permanent magnet synchronous motor, high speed start and stop, smooth and smooth tracking with rad
|
| PT position |
1. Positioning accuracy: 0.01°- 0.02°, high-frequency fine-tuning pulse precision motor drive, digital angle measurement sensor servo
2. Positioning time: less than 4s
|
| Patrol and Scan |
1. Preset: no less than 255
2. Path scanning: support preset point cruise, day and night cruise, line sweep, apple skin scan, scan speed can be set
3. Watch function: support watch preset point line sweep cruise apple skin
|
| Data Feedback |
1. Lens servo: support lens field of view, magnification, ZOOM/FOCUS value query, return, positioning function
2. Pan Tilt angle: support horizontal, vertical angle real-time / query return, positioning function
|
| Track Mode |
1. Support manual control tracking
2. Support radar linkage automatic tracking
3. Support front-end module automatic tracking
4. Support automatic tracking of back-end software
|
| Track Module |
1. Video interface: support visible light/ thermal image video switching tracking
2. Video format: composite video, PAL, NTSC
3. Multi-target detection: support multi-target detection
4. Tracking algorithm: Integrate multiple tracking algorithms, which can be switched manually/automatically according to different scenarios, and support recapture and lock when the target is temporarily lost
5. Target size: adaptive gate, the size of the tracking frame changes automatically according to the target size
|
| Enhance |
1. Heating defrost: oriented industrial window defroster, automatic heating temperature control
2. Power failure memory: support, can restore power off state
3. Motor protection: PT blocking protection, high reliability
4. Fault detection: support power-on self-test, status query and fault code feedback
5. Upgrade maintenance: remote restart, remote upgrade function, convenient system maintenance
|
| Protocol |
1.TCP / IP, HTTP, DHCP, DNS, DDNS, RTP and other network protocols
2. Support ONVIF2.0
3. Pelco-P, Pelco-D and other industry-standard protocol, baud rate 2400,4800,9600,19200 alternative, proprietary protocols can be customized
|
| Power supply |
AC90V~305V to DC48V Turntable rotation power can be controlled in 120W Maximum power consumption 180W |
| Environmental Indicators |
1. Working temperature: -40 ℃ ~ + 60 ℃
2. Storage temperature: -45 ℃ ~ + 70 ℃
3. Humidity: <90%
4. Protection: IP66
|
Applications:
Anti-UAV control, low-altitude air defense, military base security monitoring, airport monitoring, oil field and oil depot security.
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.
